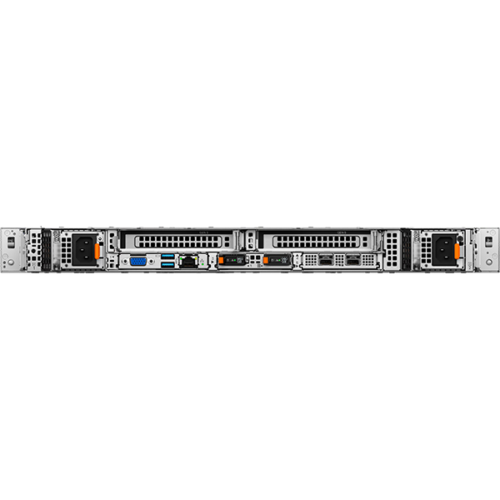

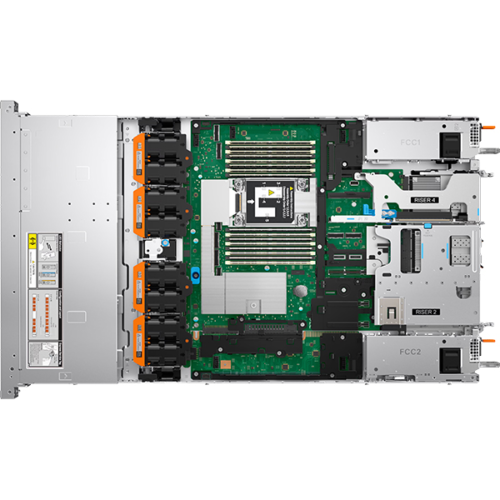

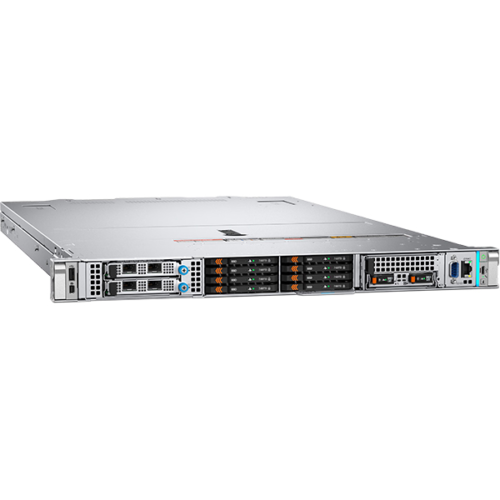

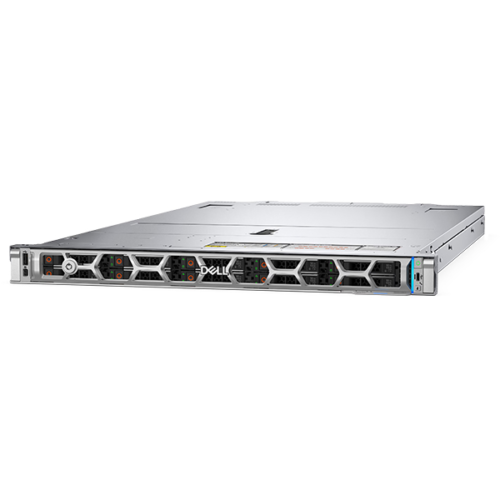

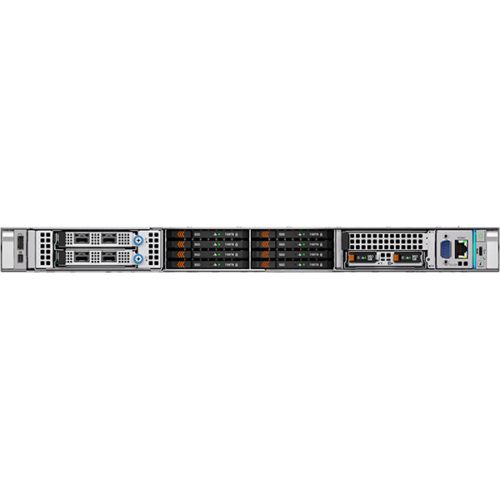

DELL PowerEdge R470 (SNSR4701)
- CPU 1 x Intel Xeon 6 Performance 6505P (2.20 GHz 48M Cache)
- RAM 16GB (1x16GB) RDIMM 6400Mt/s, Single Rank
- Hard Disk 2x 960GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot-plug AG Drive, 1 DWPD
- Optical No
- LAN –
- Graphic Onboard
- Raid Controller PERC H965i Controller, Front, DC-MHS Support RAID 0, 1, 5, 6, 10, 50, 60
- Monitor No
- OS No
- Keyboard Mouse No
- Power Supply Dual, Fully Redundant(1+1), Hot-Plug MHS Power Supply,800W MM (100-240Vac)
- System Management iDRAC10, Enterprise 17G with OpenManage Enterprise Advance
- Warranty 3 Years ProSupport & Mission Critical: (7×24) 4-hour Onsite Service + 3 Years Keep Your Hard Drive
- เลือกดูสินค้าอื่นในหมวดเดียวกัน
The Dell PowerEdge R470 is a next-generation, high-density 1U rack server designed to deliver uncompromising performance for modern data centers and edge environments. As a cornerstone of Dell’s 17th Generation (17G) server portfolio, the R470 is specifically engineered to balance massive compute power with a slim, space-saving footprint, making it the ideal choice for virtualization, cloud infrastructure, and AI-assisted analytics.
Next-Generation Compute Performance
The PowerEdge R470 is powered by the latest Intel® Xeon® 6 processors, offering a significant leap in core density and efficiency over previous generations. Whether configured with Performance-cores (P-cores) for heavy-duty workloads or Efficient-cores (E-cores) for high-density scale-out tasks, this dual-socket server provides the agility needed to handle complex computational demands. It is built to support a wide range of TDPs, ensuring that even the most intensive high-performance computing (HPC) applications remain stable and responsive.
Advanced Memory and High-Speed I/O
To eliminate data bottlenecks, the R470 integrates ultra-fast DDR5 memory, which provides a substantial increase in bandwidth and energy efficiency compared to its predecessors. The server also leverages the full power of PCIe Gen5, doubling the data throughput for networking cards, storage controllers, and NVMe accelerators. This makes the R470 exceptionally capable in environments where low latency and high-speed data movement are critical, such as financial services or real-time data processing.
Optimized Storage and Thermal Efficiency
Despite its compact 1U chassis, the R470 offers versatile storage configurations. It supports the latest NVMe SSDs and E3.S form factors, which are designed for superior thermal performance and high-capacity storage density. To manage the heat generated by high-performance silicon, Dell has implemented a sophisticated smart cooling architecture. This system uses intelligent fan control and optimized airflow paths to maintain peak performance while minimizing power consumption, helping organizations achieve their sustainability goals and reduce total cost of ownership (TCO).
Cyber-Resilient Security and Management
Security is deeply embedded into the DNA of the PowerEdge R470. It features a Cyber Resilient Architecture that utilizes a Silicon Root of Trust and secured component verification to ensure the server remains untampered from the factory to the data center. For management, the integrated Dell Remote Access Controller (iDRAC) provides administrators with a powerful, agentless tool for automated deployment, monitoring, and maintenance. This ecosystem allows for “zero-touch” management, enabling IT teams to oversee large-scale deployments with minimal manual intervention.
Versatile Deployment for the AI Era
The R470 is not just a standard web server; it is an AI-ready platform. With support for specialized accelerators and enhanced vector processing within the Intel Xeon 6 architecture, it can efficiently run local AI inference models and machine learning algorithms. Its compact size and robust build also make it a primary candidate for Edge Computing, where high-performance compute is needed closer to where data is generated.
