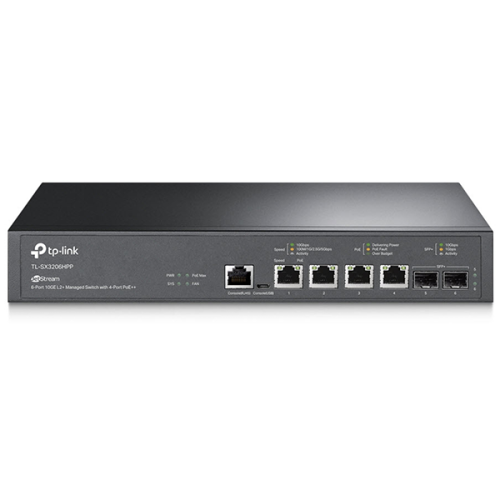

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ (TL-SX3206HPP)

The TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ (TL-SX3206HPP) is a specialized and powerful networking device designed for high-bandwidth applications that also require power delivery over Ethernet. It’s an ideal solution for businesses, campuses, and ISPs looking to deploy advanced Wi-Fi 6/6E access points, high-speed surveillance cameras, and other demanding PoE-powered devices, while maintaining a robust and centrally managed network.

Overview of the TP-Link JetStream TL-SX3206HPP

This switch is a fully managed Layer 2+ switch, meaning it offers a comprehensive suite of advanced networking features, including basic Layer 3 routing capabilities (Static Routing). What sets it apart is its full 10 Gigabit Ethernet (10GE) connectivity combined with high-power Power over Ethernet (PoE++). It’s an integral part of TP-Link’s Omada Software Defined Networking (SDN) platform, allowing for unified cloud-based management alongside other Omada network devices.

Key Features and Capabilities

• Full 10 Gigabit Ethernet (10GE) Connectivity:

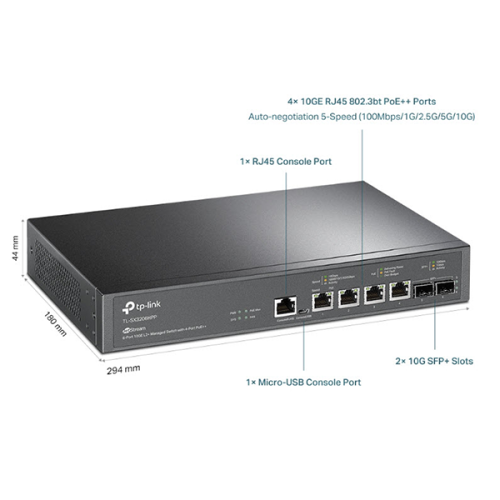

  • 4 x 10GBASE-T RJ45 Ports (with PoE++): These four ports are multi-gigabit compatible, supporting speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and full 10Gbps over standard Ethernet cabling. This makes them perfect for connecting high-bandwidth devices like Wi-Fi 6/6E access points, 10G-enabled servers, and advanced workstations.
  • 2 x 10GE SFP+ Slots: These two fiber optic slots provide ultra-high-speed uplink capabilities. They are ideal for connecting to core switches, network attached storage (NAS), or building a high-speed fiber backbone for non-blocking switching performance and ultra-low latency.
  • Total Switching Capacity: With a total switching capacity of 120 Gbps and a packet forwarding rate of 89.28 Mpps, the switch can handle massive amounts of data flow without bottlenecks.
• High-Power PoE++ Output (802.3bt):
  • 4 Ports with PoE++: All four 10GBASE-T RJ45 ports support the latest 802.3bt PoE++ standard, delivering up to 60W of power per port. This is critical for powering demanding devices like high-performance Wi-Fi 6/6E access points (which often require more than standard PoE+), high-resolution PTZ IP cameras, or thin clients.
  • 200W Total PoE Power Budget: The switch provides a substantial total power budget of 200W across its four PoE++ ports, allowing for flexible deployment of multiple high-power devices simultaneously.
• Abundant L2 and L2+ Features: As a managed switch, it includes a comprehensive set of features for robust network control and security:
  • Static Routing: Enables basic Layer 3 routing, allowing the switch to route traffic between different VLANs without needing an external router for internal network segments.
  • VLAN (Virtual Local Area Network): For logical network segmentation, enhancing security, and improving broadcast domain management.
  • QoS (Quality of Service): Advanced QoS with 8 priority queues, SP/WRR scheduling, and bandwidth control (port/flow-based) to ensure optimal performance for critical applications.
  • IGMP Snooping & MLD Snooping: Optimizes multicast traffic delivery for efficient video streaming and IP TV.
  • Link Aggregation (LAG/LACP): Combines multiple physical links for increased bandwidth and link redundancy.
  • Spanning Tree Protocol (STP/RSTP/MSTP) & ERPS: Prevents network loops and ensures network stability and rapid recovery.
  • ACL (Access Control List): Provides granular control over network traffic based on various criteria for enhanced security.
  • Port Security: Limits the number of MAC addresses on a port to prevent unauthorized devices.
  • 802.1X Authentication: Offers strong network access control by authenticating users and devices.
  • DoS Defend, Storm Control, DHCP Snooping: Comprehensive security strategies to protect the network.
• Omada SDN Integration: Seamlessly integrates with the Omada Software Defined Networking (SDN) platform, providing:
  • Centralized Cloud Management: Manage the switch, Omada Access Points, and Omada Gateways from a single, unified interface accessible via the Omada SDN controller (hardware, software, or cloud-based).
  • Zero-Touch Provisioning (ZTP): Simplifies deployment by allowing automatic configuration of new devices.
  • Intelligent Monitoring: Provides real-time insights into network performance, client statistics, and traffic patterns.
  • Remote Access: Enables network administrators to manage the network from anywhere with an internet connection.
• Standalone Management: In addition to Omada SDN, the switch can be managed via Web GUI, CLI (Console Port, Telnet, SSH), SNMP, and RMON, offering flexible management options.

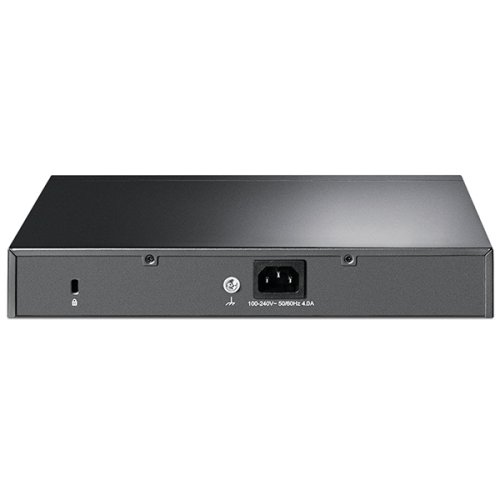

• Robust Hardware Design: Housed in a durable metal casing, designed for both desktop and rack mounting, ensuring reliable operation in various environments. It features cooling fans for efficient heat dissipation.

Ideal Use Cases

The TP-Link JetStream TL-SX3206HPP is perfectly suited for:

• High-Density Wi-Fi 6/6E Deployments: Providing both 10GE backhaul and high-power PoE++ for the latest generation of Wi-Fi access points.
• Small to Medium-Sized Data Centers: As an aggregation or top-of-rack (ToR) switch for connecting servers and storage that require 10GE copper or fiber connectivity.
• Advanced IP Surveillance Systems: Powering high-resolution PTZ cameras and ensuring high-bandwidth video streams.
• Enterprise and Campus Networks: For department-level aggregation where high-speed client access and powerful PoE are needed.
• Any environment requiring a compact, high-performance 10GE switch with substantial PoE++ capabilities and centralized management.
