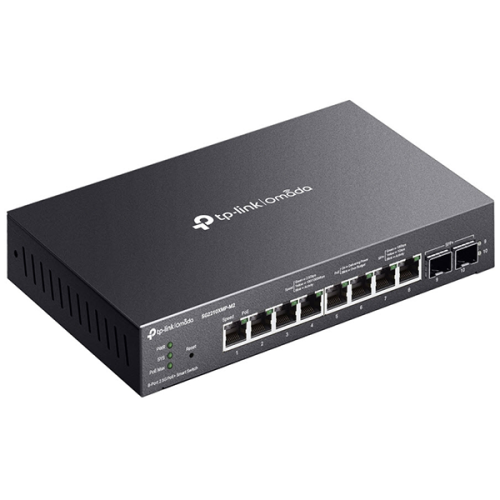

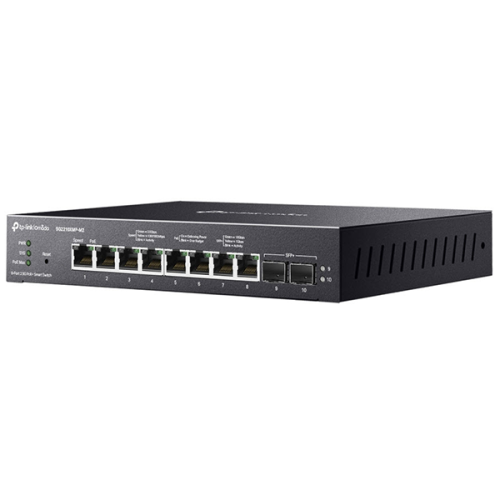

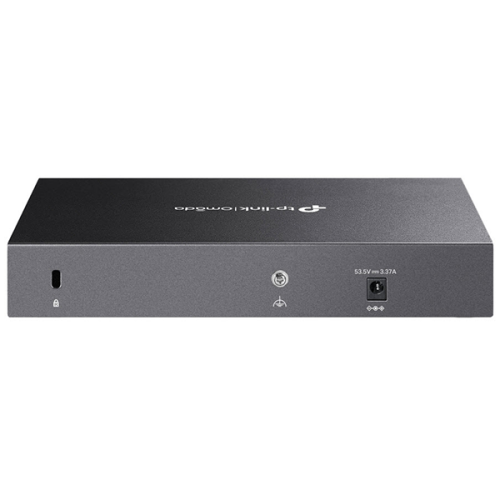

TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ (SG2210XMP-M2)

The TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ (SG2210XMP-M2) is a highly versatile and powerful network switch designed to support the growing demands of modern networks, especially those leveraging Wi-Fi 6/6E access points, high-speed workstations, and other devices requiring multi-gigabit connectivity and Power over Ethernet (PoE). It’s positioned as a “Smart Switch,” meaning it offers a robust set of Layer 2 features with some Layer 3 capabilities, all while maintaining a user-friendly management interface. Crucially, it’s a key component within the TP-Link Omada Software Defined Networking (SDN) platform.

Overview of the TP-Link Omada SG2210XMP-M2

The SG2210XMP-M2 provides a hybrid connectivity solution by combining eight 2.5 Gigabit Ethernet (2.5GBASE-T) ports with PoE+ capability and two 10 Gigabit Ethernet (10GE) SFP+ slots for high-speed uplinks. This combination makes it an excellent choice for future-proofing networks, providing ample bandwidth for bandwidth-intensive applications and next-generation wireless deployments. Its integration into the Omada SDN system allows for centralized, cloud-based management, simplifying network administration significantly.

Key Features and Capabilities

• 8 x 2.5GBASE-T RJ45 Ports: These eight ports support multi-gigabit speeds (100Mbps/1Gbps/2.5Gbps) over standard Cat5e/Cat6 Ethernet cables, making them ideal for:
  • Wi-Fi 6/6E Access Points: Providing the necessary multi-gigabit backhaul for high-performance Wi-Fi access points to deliver their full potential.
  • High-Speed Workstations: Connecting PCs, macOS machines, and other devices equipped with 2.5GbE NICs for faster file transfers and reduced latency.
  • Network Attached Storage (NAS): Ensuring quick access to shared storage.
• 8-Port PoE+ (802.3at) with High Power Budget: All eight 2.5GBASE-T ports also support PoE+, delivering up to 30W per port. With a total 160W PoE power budget, the switch can reliably power numerous PoE+ devices such as:
  • Wi-Fi 6/6E Access Points
  • IP Cameras (including PTZ models)
  • VoIP Phones
  • Other PoE-powered devices
• 2 x 10GE SFP+ Uplink Slots: These two dedicated 10 Gigabit Ethernet SFP+ slots provide high-bandwidth uplinks to the network core, aggregation switches, or high-speed servers. This ensures non-blocking performance and minimizes bottlenecks between the access layer and the rest of the network.
• Smart Switch Features (L2+ Managed): The SG2210XMP-M2 goes beyond basic Layer 2 functions, offering a comprehensive set of features for robust network control:
  • Static Routing: Enables the switch to perform basic Layer 3 routing, allowing efficient traffic flow between different VLANs without needing an external router for simple internal segments.
  • VLAN (Virtual Local Area Network): For network segmentation, enhancing security, and improving broadcast domain management.
  • QoS (Quality of Service): Advanced QoS mechanisms to prioritize critical traffic (e.g., VoIP, video conferencing) to ensure optimal performance.
  • IGMP Snooping & MLD Snooping: Optimizes multicast traffic delivery for efficient video streaming and IPTV.
  • Link Aggregation (LAG/LACP): Combines multiple physical links for increased bandwidth and link redundancy.
  • Spanning Tree Protocol (STP/RSTP/MSTP): Prevents network loops and ensures network stability.
  • ACL (Access Control List): Provides granular control over network traffic for enhanced security.
  • Port Security & 802.1X Authentication: Robust security features to prevent unauthorized access.
  • DHCP Snooping, DoS Defend, Storm Control: Additional security and network health features.
• Omada SDN Integration: This is a core strength of the switch, enabling:
  • Centralized Cloud Management: Configure, monitor, and troubleshoot the SG2210XMP-M2 and other Omada devices (APs, routers) from a single interface via the Omada SDN controller (hardware, software, or cloud-based).
  • Zero-Touch Provisioning (ZTP): Simplifies deployment by allowing new devices to automatically fetch their configurations.
  • Intelligent Network Monitoring: Provides real-time insights into network performance, client statistics, and traffic patterns.
  • Remote Management: Allows network administrators to manage the network from anywhere with an internet connection.
• Fanless Design: The SG2210XMP-M2 features a fanless design, ensuring silent operation. This makes it ideal for deployment in noise-sensitive environments such as offices, classrooms, small data closets, or homes where fan noise would be disruptive.
• Durable Metal Casing: Housed in a robust metal casing, the switch is built for reliability and long-term performance, designed for both desktop and rack-mounting (rackmount ears usually included).

Ideal Use Cases

The TP-Link Omada SG2210XMP-M2 is perfectly suited for:

• Upgrading Small to Medium-Sized Business (SMB) Networks: Providing multi-gigabit connectivity and PoE+ for a growing number of devices, especially Wi-Fi 6/6E deployments.
• High-Density Wi-Fi Deployments: Acting as the primary switch to connect and power multiple high-performance Wi-Fi 6/6E access points.
• Modern Home Networks: For tech-savvy users building a future-proof home network with multi-gigabit devices and PoE.
• IP Surveillance Systems: Powering multiple high-resolution IP cameras and ensuring high-bandwidth video streams.
• Any environment needing a compact, high-performance switch with a mix of 2.5GbE PoE+ ports and 10GbE uplinks, managed centrally.
