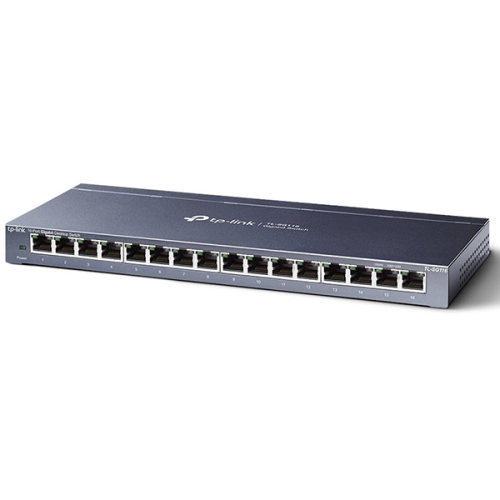

TP-Link 16-Port Gigabit Desktop Switch (TL-SG116)

The TP-Link 16-Port Gigabit Desktop Switch (TL-SG116) is a high-performance, unmanaged switch designed to provide a simple and reliable way to expand your wired network. It’s a “plug-and-play” device, meaning it requires no configuration, making it incredibly easy to set up and use for both home and small office environments.

Overview of the TP-Link TL-SG116

The TL-SG116 features 16 Gigabit Ethernet ports, all supporting 10/100/1000Mbps speeds. As an unmanaged switch, its primary function is to efficiently forward network traffic between connected devices at the fastest possible speed without requiring any user configuration. This makes it an ideal solution for users who need more wired ports for their devices but don’t require advanced network management features like VLANs or QoS configurations. Its robust metal casing and fanless design contribute to its reliability and suitability for various environments.

Key Features and Capabilities

• 16 x Gigabit RJ45 Ports: All 16 ports operate at Gigabit Ethernet speeds, providing high-speed connectivity for a wide range of wired devices. This is crucial for transferring large files, streaming high-definition video, and ensuring smooth online gaming experiences.
  • Auto-Negotiation: Each port automatically detects the link speed of a connected device (10Mbps, 100Mbps, or 1000Mbps) and intelligently adjusts for optimal compatibility and performance.
  • Auto-MDI/MDIX: Eliminates the need for crossover cables, simplifying cable connections. You can use straight-through or crossover cables without worrying about cable types.
• Plug and Play: This is a core characteristic of unmanaged switches. The TL-SG116 requires no software installation or configuration. Simply connect your Ethernet cables and power it on, and it’s ready to use. This makes it extremely user-friendly, even for those with minimal networking knowledge.
• Green Ethernet Technology: The switch incorporates energy-efficient technology to help save power consumption. It automatically adjusts power usage based on the cable length and the link status (e.g., powers down unused ports or reduces power for short cable runs), making it an eco-friendly choice.
• Fanless Design: The TL-SG116 operates silently due to its fanless design. This makes it ideal for deployment in quiet environments like homes, small offices, bedrooms, or living rooms where fan noise would be disruptive.
• Steel Housing (Durable Design): Housed in a durable steel casing, the switch is built to withstand wear and tear, ensuring long-term reliability. Its robust construction also allows for flexible placement, whether on a desktop or mounted on a wall.
• IEEE 802.3x Flow Control: This standard provides reliable data transfer by preventing packet loss when network traffic is heavy. It helps ensure that data is transmitted smoothly, even under high-load conditions.
• 802.1p/DSCP QoS Support (Basic): While primarily an unmanaged switch, the TL-SG116 does support 802.1p/DSCP QoS. This means it can recognize and process QoS tags if present in the incoming traffic, allowing for basic prioritization of data packets. However, you cannot configure QoS rules directly on the switch itself; it simply respects existing tags.
• IGMP Snooping Function (Basic): Similarly, it supports IGMP Snooping. This function helps optimize multicast traffic (like video streaming or IPTV) by ensuring that multicast packets are only forwarded to the ports where devices have explicitly requested them, preventing unnecessary flooding of the network. Like QoS, this is a passive function – the switch listens for IGMP messages but doesn’t offer configuration options.

Ideal Use Cases

The TP-Link TL-SG116 is an excellent choice for:

• Home Networks: Expanding wired connectivity for multiple devices such as PCs, gaming consoles, smart TVs, streaming devices, and network-attached storage.
• Small Offices: Providing reliable and fast wired connections for workstations, printers, and other office equipment without the need for complex setup.
• Small Workgroups: Facilitating high-speed data transfer between a group of users in a collaborative environment.
• Adding Ports to an Existing Router: If your router has limited Ethernet ports, the TL-SG116 can easily expand your wired capacity.
• Anyone needing straightforward, high-speed wired connectivity without management requirements.
