TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out (SG2005P-PD)

The TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out (SG2005P-PD) is a highly specialized and innovative switch designed for flexible and extended network deployments, particularly in outdoor or hard-to-reach locations where traditional power outlets are scarce. It’s a “PoE-powered PoE switch,” meaning it draws its own power via Power over Ethernet (PoE) and then redistributes power to other devices.

Overview of the TP-Link Omada SG2005P-PD

This switch is unique in its ability to be powered by a high-power PoE++ (802.3bt) source, which then allows it to power up to four other devices via PoE+ (802.3at/af) on its output ports. All five ports are Gigabit Ethernet (10/100/1000Mbps). As an Omada “Smart Switch,” it provides essential Layer 2 management features and integrates seamlessly with the TP-Link Omada Software Defined Networking (SDN) platform for centralized cloud management.

Furthermore, a significant feature of the SG2005P-PD is its ruggedized design with an IP55 weatherproof enclosure, making it suitable for outdoor deployments. It also supports extended PoE distance up to 200 meters, doubling the standard PoE range.

Key Features and Capabilities

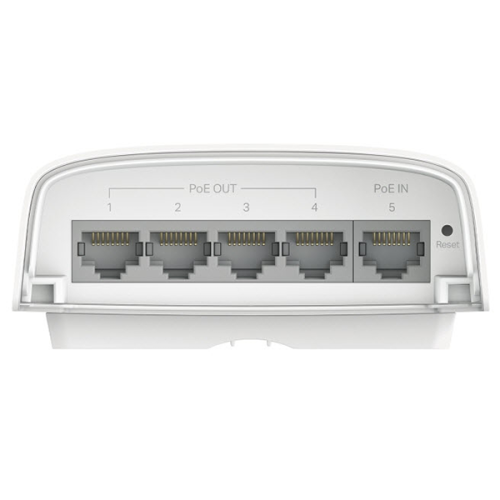

• 1-Port PoE++ In (Power Input):
  • This is the switch’s unique power source. It draws power from a single PoE++ (802.3bt, Type 3 or Type 4) compliant Power Sourcing Equipment (PSE), such as a PoE++ injector or a PoE++ switch.
  • This eliminates the need for a local AC power outlet at the switch’s installation location, simplifying deployment in outdoor or remote areas.

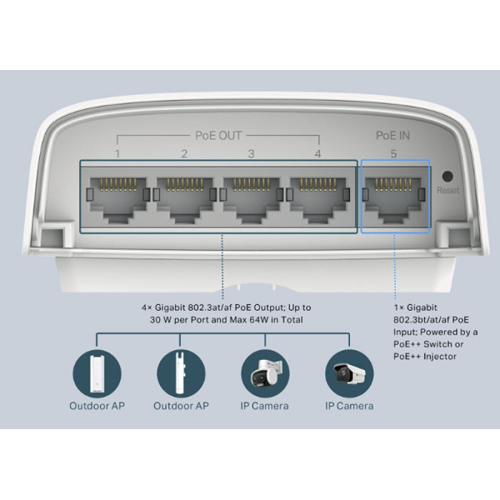

• 4-Port PoE+ Out (Power Output):
  • The other four Gigabit RJ45 ports provide PoE+ (802.3at/af) output, delivering up to 30W per port to power connected devices.
  • The total PoE power budget for the output ports varies depending on the input power:
    • Up to 64W when powered by 802.3bt Type 4 (90W input).
    • Up to 44W when powered by 802.3bt Type 3 (60W input).
    • Up to 19W when powered by 802.3at (30W input).
    • Up to 6W when powered by 802.3af (15.4W input).
  • This allows it to power devices like Wi-Fi 6 access points, IP cameras, VoIP phones, or other PoE-compatible devices.
• Full Gigabit Ports: All 5 ports are Gigabit Ethernet, ensuring high-speed data transfer between connected devices.
• Extended PoE Distance (Up to 200m): This innovative feature allows the switch to extend both power and data transmission distance up to 200 meters (656 feet) over a single Ethernet cable. This is double the standard 100-meter limit, making it perfect for long-range surveillance camera deployments or extending Wi-Fi coverage where power outlets are far away.

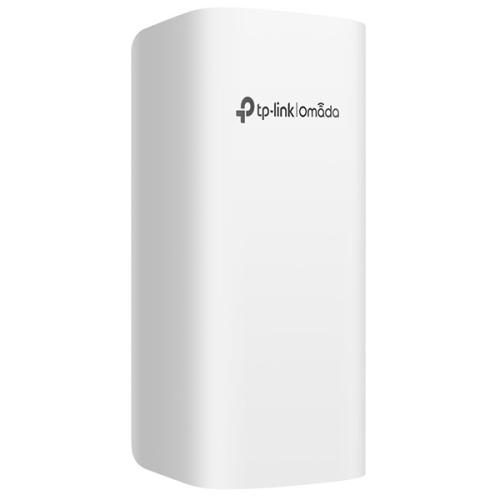

• Outdoor Weatherproof Design (IP55 Rated):
  • The robust and sealed IP55-rated enclosure protects the switch from dust ingress and jets of water from any direction, making it suitable for outdoor installation in various weather conditions.
  • It’s also UV-resistant and supports a wide operating temperature range from -40°C to 60°C (-40°F to 140°F), ensuring reliable operation in harsh environments.
  • Features 4KV lightning protection for added durability.
• Smart Switch Features: Offers essential Layer 2 management capabilities accessible via a web-based GUI or the Omada app:
  • VLAN (802.1Q): For network segmentation, enhancing security and improving broadcast domain management.
  • QoS (Quality of Service): Prioritizes network traffic (e.g., video streams from IP cameras) to ensure smooth performance.
  • IGMP Snooping: Optimizes multicast traffic delivery for efficient video streaming.
  • Static Routing: Provides basic Layer 3 routing capabilities for inter-VLAN routing.
  • ACL (Access Control List): For basic traffic filtering and security policies.
  • Port Security: Limits the number of MAC addresses on a port.
  • Loop Prevention: Helps prevent network loops.
• Omada SDN Integration: Seamlessly integrates with the TP-Link Omada Software Defined Networking (SDN) platform, providing:
  • Centralized Cloud Management: Manage the switch alongside other Omada access points, switches, and gateways from a single, unified interface via the Omada SDN controller (hardware, software, or cloud-based).
  • Zero-Touch Provisioning (ZTP): Simplifies deployment of new devices by automatically configuring them.
  • Intelligent Monitoring: Real-time insights into network performance and device status.
  • Remote Management: Access and manage the network from anywhere with an internet connection.
• Fanless Design: Operates silently due to its fanless design, making it suitable for noise-sensitive outdoor or indoor deployments.

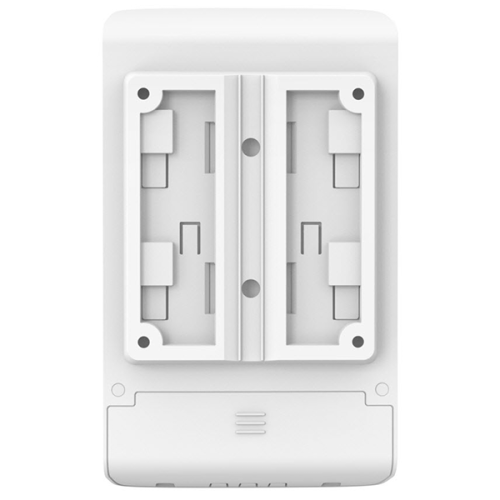

• Flexible Installation: Designed for easy pole-mounting or wall-mounting with included kits.

Ideal Use Cases

The TP-Link Omada SG2005P-PD is an excellent choice for specialized deployments such as:

• Outdoor IP Surveillance Systems: Extending camera reach and powering multiple cameras via a single Ethernet cable run from the main network.
• Outdoor Wi-Fi Deployments: Powering outdoor access points in parks, campuses, or large outdoor venues where power outlets are distant.
• Remote Network Extensions: Extending network connectivity and power to remote buildings or structures without readily available AC power.
• Small-Scale Distributed Networks: Creating small network nodes that are self-powered via PoE and can then power local devices.
• CCTV System Backbones: Providing reliable power and data distribution for security camera clusters.
